All-in-one green and roasted analyzer
2D NEAR-INFRARED IMAGINGFULL AGTRON DISTRIBUTIONAFTER THE ROAST
Compare DiFluid color meters.
Omix Plus
Currently viewing
For green buyers who need every number from one sample.
Two-dimensional imaging sensor
NEAR-INFRARED, 850 + 940 NMEVERY POINT ON THE SURFACEWHITE LIGHT DETECTS SILVERSKIN
1–150
AGTRON RANGE±0.1 REPEATABILITY
Six sample types
GreenParchmentDried cherriesFresh cherries
Roasted beansGroundsNine more measurements
MOISTURE · WATER ACTIVITYTRUE DENSITY · BULK DENSITYSCREEN SIZE · VOLUME · EXPANSION
A full distribution
HISTOGRAM OF EVERY POINTMEAN · PEAK · STANDARD DEVIATIONBIN WIDTH 5 OR 10 AGTRON
Roast level and roast evenness
MEAN PLACES THE ROAST LEVELSTANDARD DEVIATION SHOWS EVENNESSROAST DELTA COMPARES BEAN TO GROUNDS
Two Tools
BEAN MANAGER · ROAST COLOR ANALYZER
120 × 120 × 170 mm
3.5-INCH TOUCHSCREEN822 G
Omni
Currently viewing
Roast color and particle analyzer
2D NEAR-INFRARED IMAGINGFULL AGTRON DISTRIBUTIONAFTER THE ROAST
For roasters who need color and grind from one small unit.
Two-dimensional imaging sensor
NEAR-INFRARED, 850 + 940 NMEVERY POINT ON THE SURFACEWHITE LIGHT DETECTS SILVERSKIN
0–200
AGTRON RANGE±0.1 REPEATABILITY
Two sample types
Roasted beansGroundsOne more measurement
PARTICLE SIZE DISTRIBUTIOND10 · D50 · D90 · MODE · MEAN100–2500 MICRONS, 1 MICRON STEPS
A full distribution
HISTOGRAM OF EVERY POINTMEAN · PEAK · STANDARD DEVIATIONBIN WIDTH 5 OR 10 AGTRON
Roast level, and grind evenness
MEAN PLACES THE ROAST LEVELSTANDARD DEVIATION SHOWS EVENNESSPARTICLE SPREAD SHOWS GRIND EVENNESS
Five Tools
ROAST COLOR ANALYZER · PARTICLE ANALYZER · BREW RECORDER · BREW CONTROLLER · GRINDER MANAGER
109 × 79 × 72 mm
2.8-INCH TOUCHSCREEN290 G
OmniFlux
Currently viewing
Live in-roast color monitor
CAMERA, THROUGH THE GLASSLIVE CURVE, THEN A VALUEDURING AND AFTER THE ROAST
For roasters who need to act while the roast is running.
Camera lens and single-point sensor
CAMERA IN ROAST · POINT ON A TRAYMID-ROAST, OR A PREPARED SAMPLEADAPTER SWITCHES MODES
0–200
AGTRON RANGE±0.5 PREPARED · ±2 IN-ROAST
Two sample types
Roasted beansGroundsThree more measurements
BEAN AND CHAMBER TEMPERATURE, PT100INFRARED SURFACE TEMPERATUREPT100 PROBES NOT INCLUDED
A curve, then a value
COLOR PLOTTED OVER TIMERATE OF CHANGE · DROP COLORSAMPLED THROUGHOUT THE ROAST
Roast trajectory and drop point
CURVE SLOPE SHOWS DEVELOPMENTDROP COLOR SETS THE ENDPOINTSAMPLE ROAST MATCHED TO PRODUCTION
One Tool
ROAST COLOR ANALYZERPAIRS WITH AIRWAVE FOR FAN CONTROL
—
2.8-INCH TOUCHSCREEN—
CoffMeter A1
Currently viewing
Single-value roast color meter
SINGLE-POINT NEAR-INFRAREDONE AGTRON VALUEAFTER THE ROAST
For anyone who needs one repeatable number, fast.
Single-point sensor
NEAR-INFRARED, ONE BANDONE AVERAGED SPOTNO SILVERSKIN CHANNEL
0–150
AGTRON RANGE±0.5 PRECISION
Two sample types
Roasted beansGroundsNo other measurements
A single value
ONE AVERAGED NUMBERNOTHING ELSE TO READAVERAGE SEVERAL READS IN COFFEEOS
Roast level
MEAN PLACES THE ROAST LEVELSPREAD IS AVERAGED AWAY—
Two Tools
BEAN MANAGER · ROAST COLOR ANALYZER
74 × 74 × 70 mm
DISPLAY, ONE BUTTON208 G
Omix Plus
Know the density | moisture | water activity | screen size | roast color before you commit the lot.
Omix Plus measures moisture, water activity, density, screen size, bean volume, sample weight for all coffee stages, plus roast color distribution for both whole bean and ground coffee. Import and visualize results in CoffeeOS.
Water activity ±0.005 Aw · Moisture ±0.1 % · Density ±0.5 g/L · Roast color ±0.1 Agtron · Bean volume ±20 mm³
The problem
Which of these is already costing you?
Pick the one that sounds like your week.
Worth knowing
Measurement
What you get from one test.
Fill a container, put the main unit on top, press the button. Tap any reading to see what it measures and what to do with it.
Worth knowing
Menglian Badu, China, natural Catimor, received 12 July, roasted on a Roest L200 Ultra in 4:12.
Color Distribution
What does an average leave out?
Switch between the three views and see how they differ.
Roast A and Roast B are an illustration, built to average identically. The whole bean and grounds figures are from the Menglian Badu session.
Green coffee
Confirm the coffee you received.
Drag the slider to see what it means.
Water activity
0.584Aw
Ranges: METER Group, Maintaining Green Coffee Quality Through Water Activity Control, and Sustainable Harvest’s 2016–2020 storage study, reported in Daily Coffee News. Growth limits: How Water Activity Controls Microbial Growth. Ochratoxin A on green coffee: Pardo, Marín, Ramos & Sanchis, Journal of Food Protection 68(1):133–138, 2005.
Moisture is how much water is in the bean. Water activity is how much of that water is free to move. Only the second one predicts how a lot ages.
Omix Plus measures water activity by chilled-mirror dew point, the reference method rather than a resistance probe estimation, to ±0.005 Aw in as little as 30 seconds.
So a delivery can be checked as it arrives, and checked again in month four to see what your warehouse is doing to it. Two lots can arrive at the same moisture and hold that water differently, and six months on they will not be in the same condition.
Storage guidance, not a specification. Set your own limits and hold them.
Sample types
Which container takes which coffee.
See the process.
CoffeeOS
Your beans, and everything you ever measured about them.
Omix Plus connects to CoffeeOS on your phone.
Worth knowing
The system
Roast Control System
Omix Plus is invaluable to the price conscious roaster. Add OmniFlux and AirWave for complete control over your roasting. Step through what each one does.
Bundles
Buying it together costs less.
Every Roast Control System bundle is priced below its parts.
The whole system
Ultimate
Omix Plus · OmniFlux · AirWave
See the bundle
Core
Omix Plus · OmniFlux
See the bundle
Green
Omix Plus · AirWave
See the bundle
Flux
OmniFlux · AirWave
See the bundle
AirWave and OmniFlux are also sold on their own.

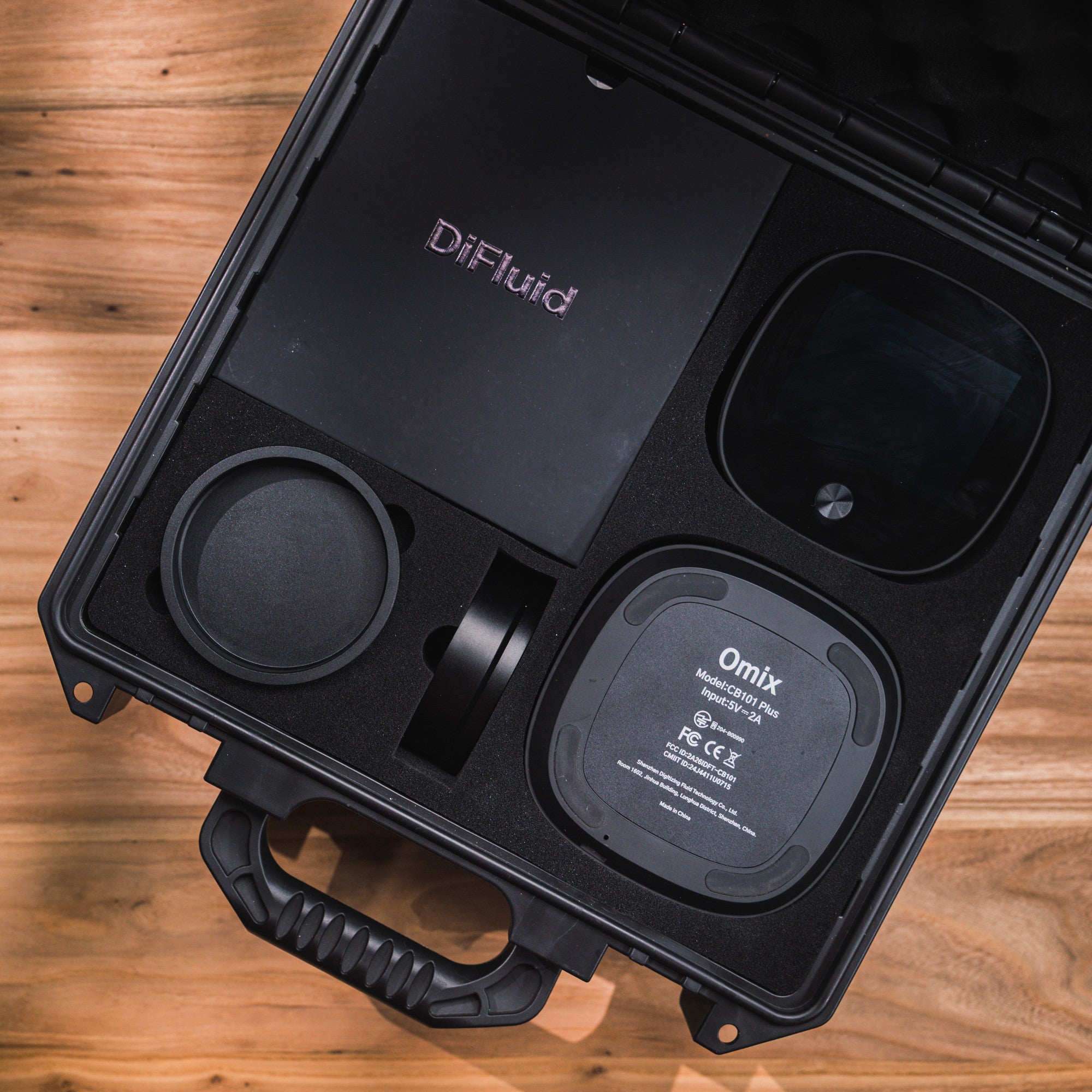

In the box
What comes in the case.
Everything you need to get going.
Container A. Green coffee, parchment and dried cherry, about 150 g. Moisture, density, screen size, bean volume, weight and water activity all come from this one.
Container B. Roasted whole beans, about 18 g. Color only.
Container C. Ground coffee, about 5 g. Color only.
Container D. Agtron calibration reference.
Scraper and brush. Leveling is the largest source of drift in density and color. Draw the scraper across the rim so the sample sits as level as possible with the top edge, and do not press it down.
Sample base, toolbox, tempered-glass film, USB-C cable. The main unit and the sample base carry separate batteries and charge together while they are attached.
Calibration solution bottle. Water activity calibrates against a saturated salt solution you make and pour into container B.
Omix Plus
Green coffee and roasted coffee, measured on the same bench, filed under the same bean.
Not sure it fits your bench? Prepare a sample and run a test in your browser first.
